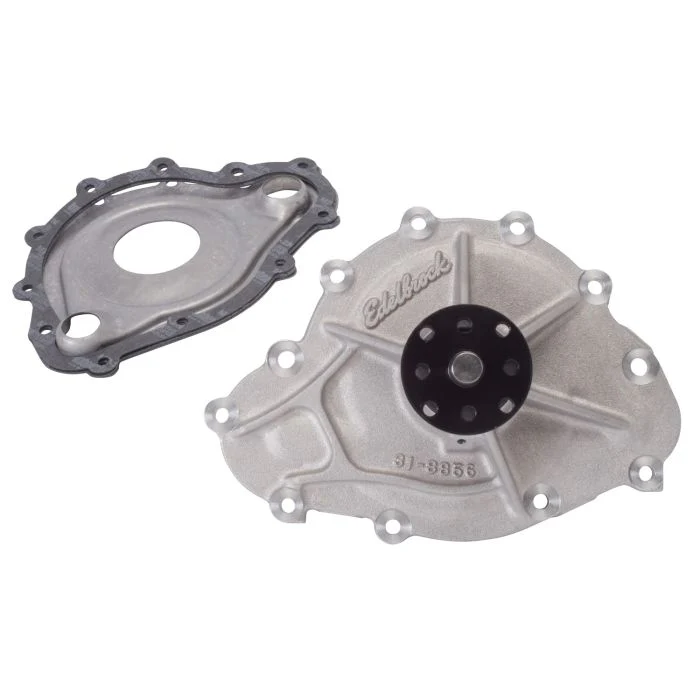

Edelbrock Water Pump Pontiac 389-455 (Standard Rotation) Satin Finish 8856
- Application Application: Specific
- Thermostat And Housing Included: No
- Mounting Hole Quantity: 11
- Housing Material: Aluminum
- Impeller Material: Powdered Metal
- Installation Warnings: Yes
- Hub Hole Quantit:y 6
- Fan Clutch Included: No
- Impeller Vane Quantity: 6
- Includes Back Housing: Yes
- Related Cooling Fan Components: No
- Casting Number: 8856
- Availability Note: Available to Order
- Warranty: 12 Months
- Hub Height: 4.500 in
- Impeller Rotation: Standard
- Outlet Quantity: 1
- Pulley Included: No
- Water Pump Drive: Type V-Belt
Install Notes
-
Incorrect alignment or an unbalanced condition puts excessive strain on the pump's shaft and/or bearing and will result in early failure of the shaft and/or bearing; The balance of the assembly depends primarily upon the concentricity of the fan clutch and spacers with the pump shaft; Concentricity is not assured when universal type clutches or spacers are used. Universal fan clutches and spacers have a 3/4" pilot hole, so an adapter must be used when installing a water pump with a 5/8" shaft, the adapter bushing is supplied with the unit; So special care must be taken to maintain concentricity with the shaft and the fan clutch. Failure to do so will void warranty; The use of aftermarket (non-OEM) fan spacers are not recommended and will void the warranty of the water pump
Description and Information
Original: $406.95
-65%$406.95
$142.43Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Application Application: Specific
- Thermostat And Housing Included: No
- Mounting Hole Quantity: 11
- Housing Material: Aluminum
- Impeller Material: Powdered Metal
- Installation Warnings: Yes
- Hub Hole Quantit:y 6
- Fan Clutch Included: No
- Impeller Vane Quantity: 6
- Includes Back Housing: Yes
- Related Cooling Fan Components: No
- Casting Number: 8856
- Availability Note: Available to Order
- Warranty: 12 Months
- Hub Height: 4.500 in
- Impeller Rotation: Standard
- Outlet Quantity: 1
- Pulley Included: No
- Water Pump Drive: Type V-Belt
Install Notes
-
Incorrect alignment or an unbalanced condition puts excessive strain on the pump's shaft and/or bearing and will result in early failure of the shaft and/or bearing; The balance of the assembly depends primarily upon the concentricity of the fan clutch and spacers with the pump shaft; Concentricity is not assured when universal type clutches or spacers are used. Universal fan clutches and spacers have a 3/4" pilot hole, so an adapter must be used when installing a water pump with a 5/8" shaft, the adapter bushing is supplied with the unit; So special care must be taken to maintain concentricity with the shaft and the fan clutch. Failure to do so will void warranty; The use of aftermarket (non-OEM) fan spacers are not recommended and will void the warranty of the water pump
