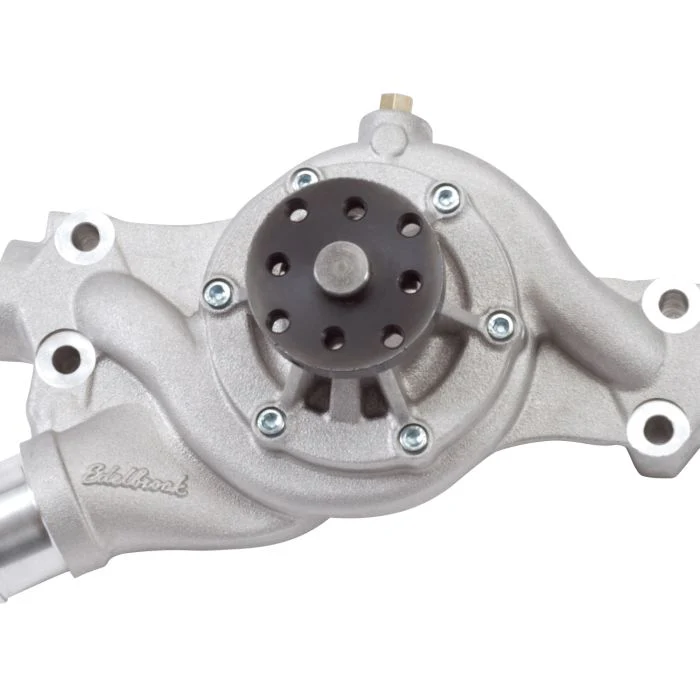

Edelbrock Water Pump Cartridge Small-Block Chevy (Race Style) 8827

• Application: Application Specific
• Thermostat And Housing Included: No
• Mounting Hole Quantity: 4
• Housing Material: Aluminum
• Impeller Material: Powdered Metal
• Installation Warnings: Yes
• Hub Hole Quantity: 6
• Fan Clutch Included: No
• Impeller Vane Quantity: 6
• Includes Back Housing: Yes
• Related Cooling Fan Components: No
• Casting Number: 8827
• Availability Note: Available to Order
• Warranty: 12 Months
• Hub Height: 5.813 in
• Impeller Rotation: Standard
• Outlet Quantity: 1
• Pulley Included: No
• Water Pump Drive Type: V-Belt

Install Notes

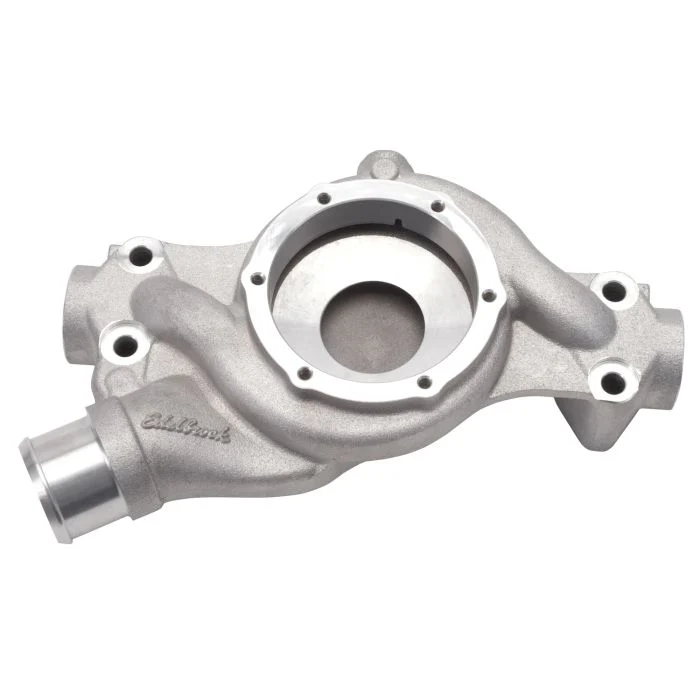

The Edelbrock 8827 is a two-piece insert-style water pump with a 1.80" diameter inlet designed for small block Chevrolet engines used in competition- The pump uses the same hub height (5 13/16") as the short leg pump found on 1971-82 Corvettes - It offers weight savings along with increased durability and cooling potential - The #8828 is a replacement insert service item for the #8827.- Installation is the same as for original equipment water pumps, although it does require longer than stock mounting bolts - Consult service manual for specific procedures, if necessary - A -2 AN bleeder screw is installed at the top of the pump. - Loosen the screw after filling the cooling system to remove any air.

Description and Information

Edelbrock #8827 Water Pump small block Chevy cartridge style race ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.
